Number input

Number input allows users to enter a numeric value and incrementally increase or decrease this value with two controls.

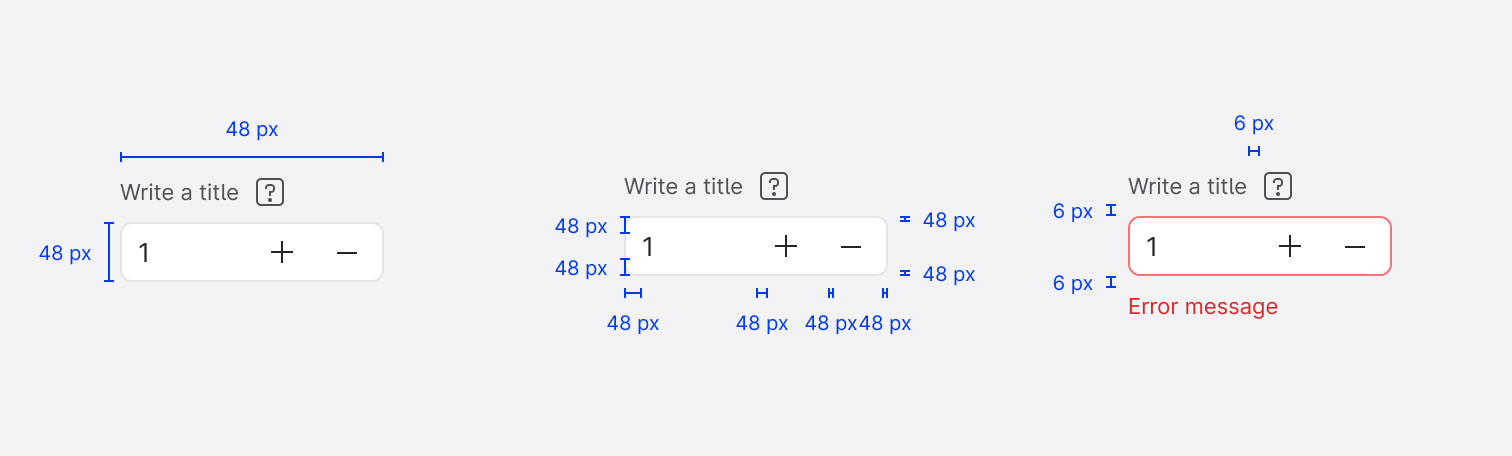

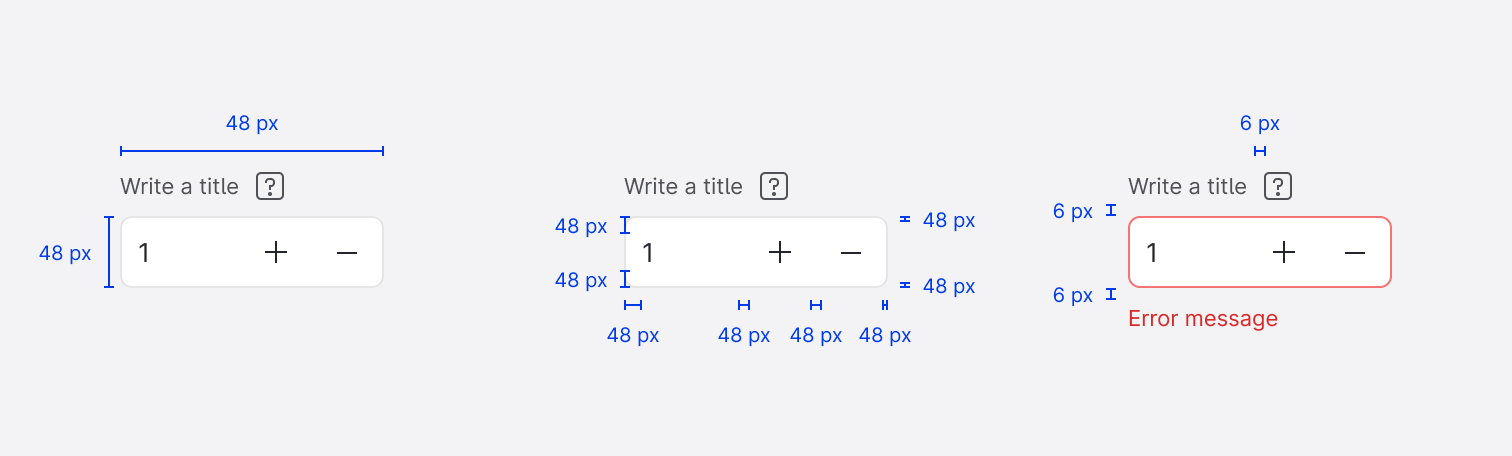

Dimensions

For number input, Soul defines two sizes in height: small and medium. The width varies in size based on content, layout, and design.

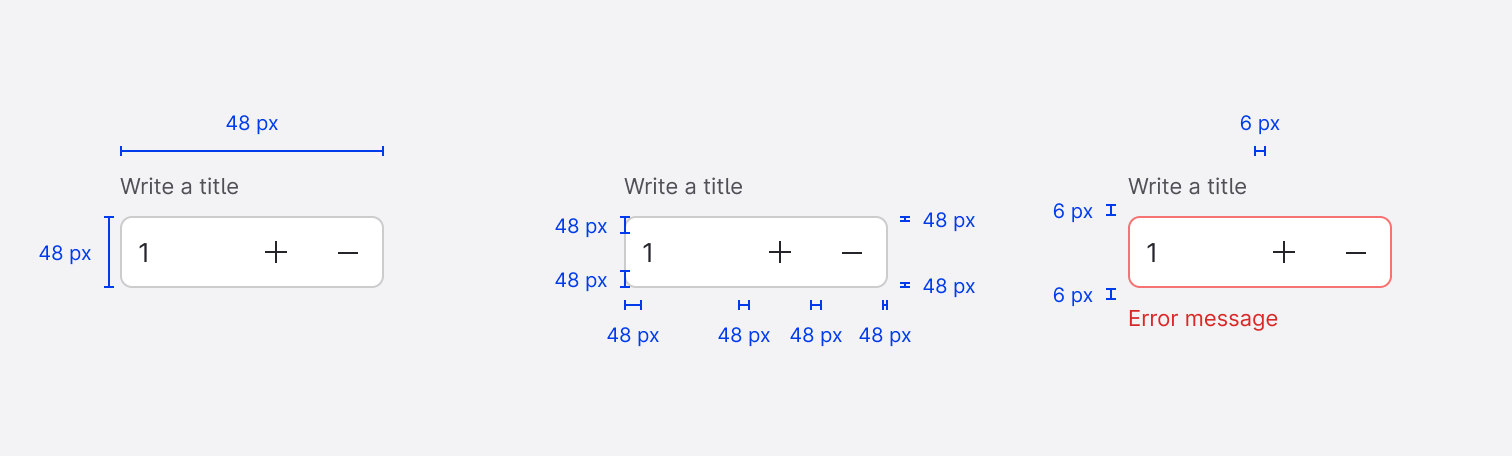

Medium

Medium

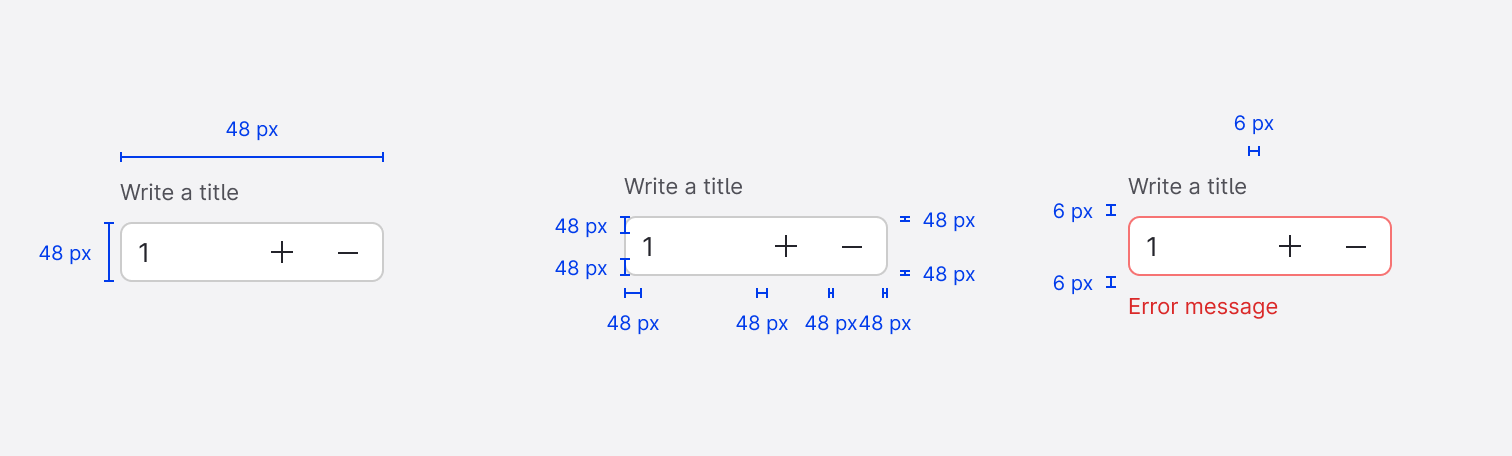

Small

Small

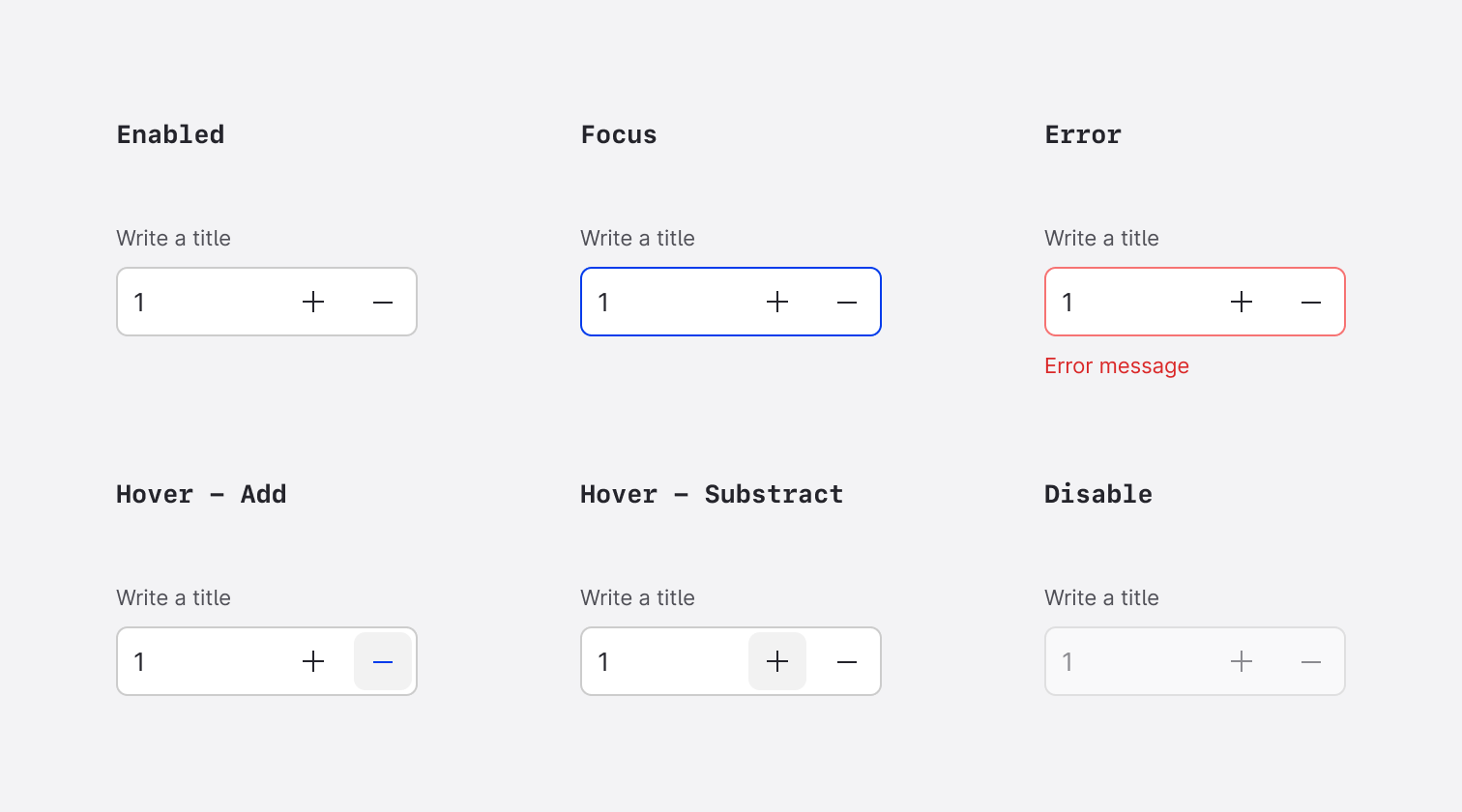

States

Number input has a series of states for both field and control elements: enabled, hover, focus, error, and disabled.

DS - States
  1. Enabled
    In most cases, the enabled state is a default state. An exception could be made when you need to speed up an obvious flow. For example, when a user opens a selection with a search, the search is immediately focused.
  2. Focus
    A focused state communicates when a user has highlighted an element, using a keyboard or mouse and it is possible to enter a value.
  3. Error
    An error state communicates a user or system mistake.
  4. Disabled
    Number input in a disabled state indicates that an option exists but is not available given the circumstances. This can be used to maintain the layout's continuity and communicate that action may become available in the future. A disabled number input requires a tooltip explaining why the option is disabled.
  5. Hover
    Buttons are in a hover state when the user's cursor is on the button but they haven't clicked on it yet.

Typography

The number of input titles should be set in sentence case, with only the first word in a phrase and any proper nouns capitalized. The number of input titles should be four words or less.



Font-size (px)

Font-weight

Title

11

Regular

Content

13

Regular
